IREEDA AR Coating K9/Quartz Optical Windows

Shaanxi Ireeda Protective Technology Co., Ltd.
Engineer Manager : Ms.Melin
WhatsApp: +8618291418396
E-mail: melin@ireeda.com

What is window?

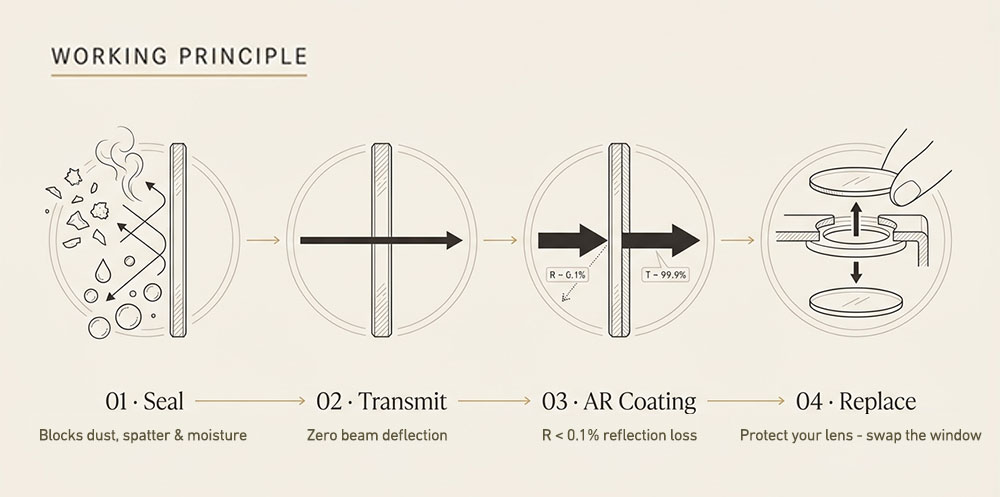

IREEDA Optical windows are transparent glass components that are used to transmit light of a designed wavelength range while simultaneously minimizing reflection and absorption.

They are used as a protective element between two environments and their impact on the passage of light is neutral.

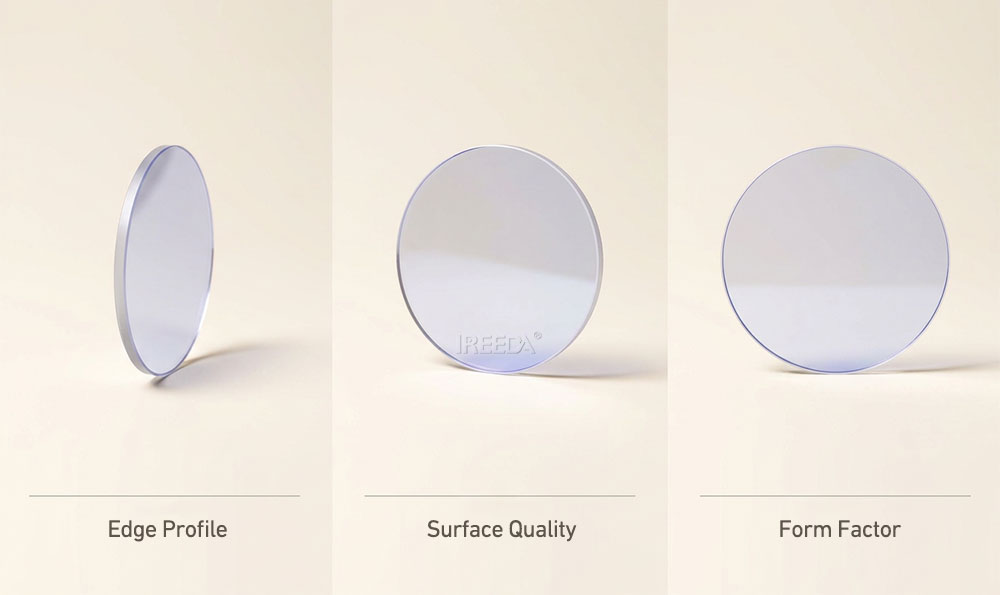

IREEDA Window

Description

An optical window is more than just a transparent barrier; it is a critical component that defines the performance and reliability of your entire optical system. At IREEDA, we understand that the choice of substrate affects everything from spectral transmission and thermal conductivity to mechanical pressure handling. IREEDA provide a comprehensive suite of precision optical windows engineered to withstand the most demanding environments, from deep UV to far-infrared (IR) applications.

IREEDA Window

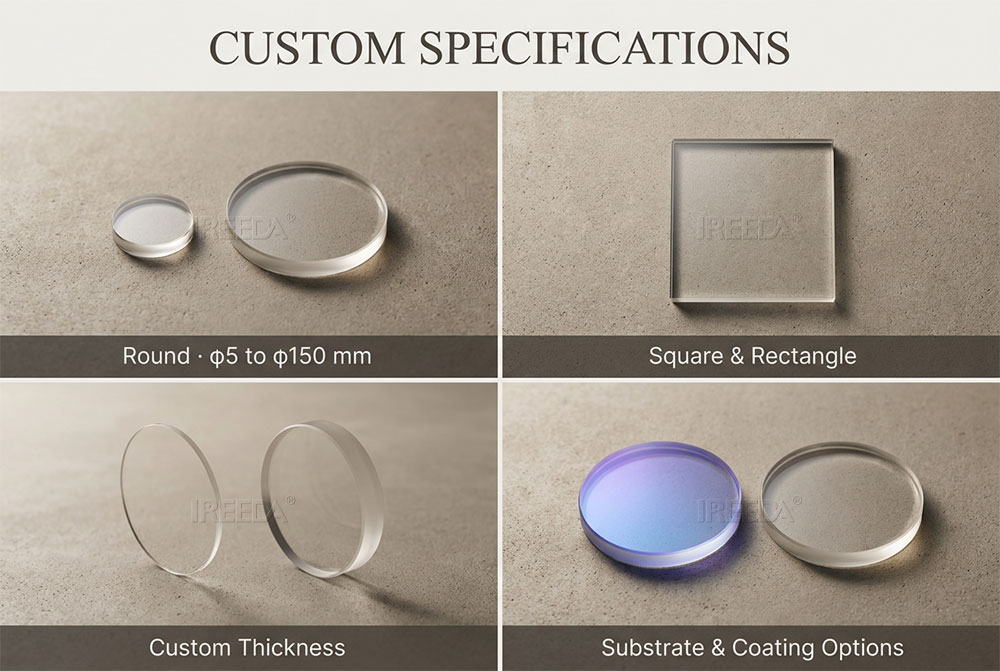

Custom Optical Window Designs including cut-outs & drill holes
In almost any shape
Coatings suitable for your application

Standard Materials:
N-BK7, fused silica windows, IR windows & UV windows (UV-grade, optical grade or IR-grade) and sapphire optical windows.

Also possible: CaF2, BaF2, MgF2, Ge, Si, ZnSe, etc.

Specification

Specifications	Available Quality
Range of dimensions	1mm-600mm
Highest available surface figure	λ/20 (DIN: 3/0,1)
Highest available surface quality	10-5 S/D (DIN: 5/1×0,04)
Highest available tolerance of beam deviation	1″ (arcsec)

Request A quick Quote （WhatsApp/wechat:+86-18291418396）
