Product Overview

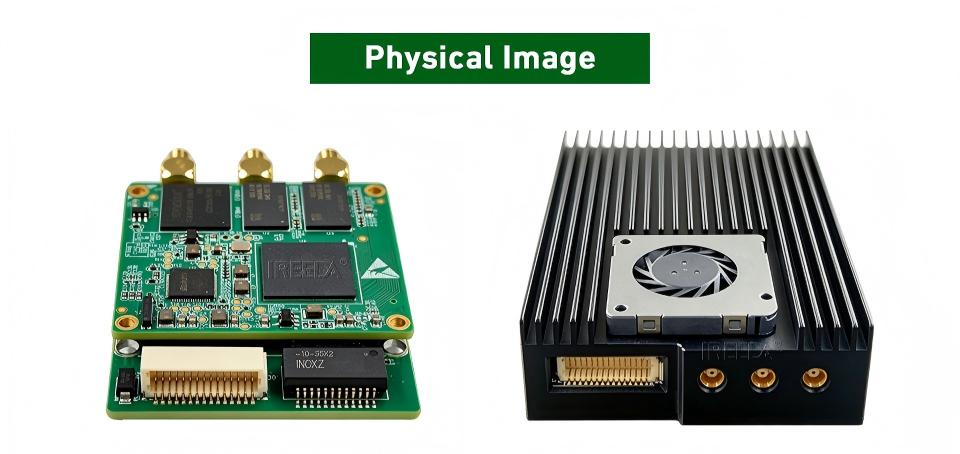

IREEDA AI video tracking board adopts domestic intelligent AI chip & proprietary image processing algorithms. It supports real-time visible light/infrared video stream processing, automatic/manual target locking & tracking, and outputs real-time off-target deviation data for FOV center alignment.
Key Highlights

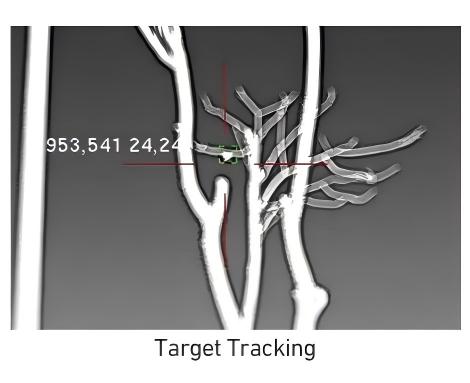

1.1 High Precision Target Tracking
- Supports centroid, correlation, multi-target & AI tracking
- Multiple lock modes: click/box select, auto, center, ID lock
- Anti-interference: occlusion, jitter, deformation, illumination, similar targets
- Auto re-detection & adaptive tracking gate
- Real-time status monitoring & feedback

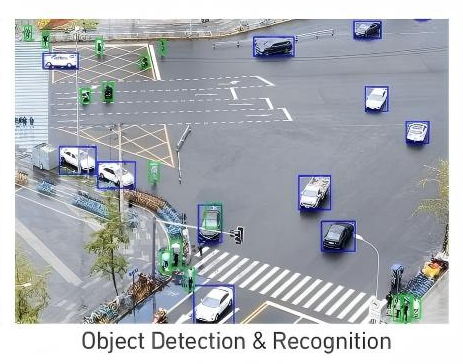

- AI auto detection: person, vehicle, boat, aircraft, UAV
- SpeedDP™ AI platform: annotation, training, one-click deployment
- High accuracy & fast response

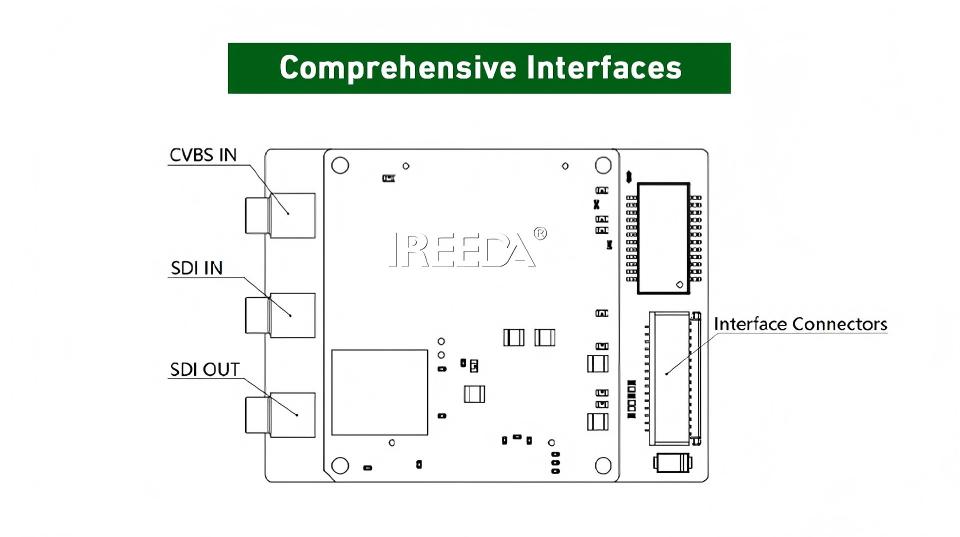

- Input: SDI, CVBS, RTSP, MIPI, DVP, LVDS, Cameralink, USB
- Output: SDI, CVBS, RTSP, MIPI, Cameralink
- Communication: RS422/485/232, TTL, Ethernet, TCP/UDP

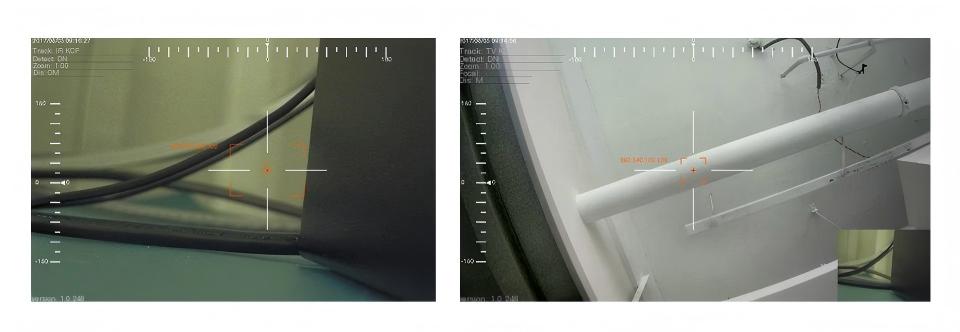

- Custom OSD: time, version, frame, reticle, GPS, PTZ angle
- Multi-channel PIP & main stream switch
- Local capture/recording & FTP management
- Direct PTZ camera control
- IP setup, OTA upgrade, log query, factory reset
Specification Reference
| Performance Index | |
|
Tracking frame rate |
30 Hz baseline (configurable up to 50Hz with compatible camera input)
|
|
Minimum trackable target
|
4 × 4 pixels (centroid tracking);
10 × 10 pixels (correlation tracking)
|
|
Tracking accuracy
|
≤ 1 pixel
|
|
Tracking speed
|
≥ 32 pixels/frame
|
|
Minimum target contrast (centroid)
|
≥ 5%
|
|
Multi-target capacity
|
≤ 32 concurrent targets
|
|
Recognition frame rate
|
25 Hz
|
|
Minimum recognizable target
|
20 × 20 pixels |
|
Recognition performance
(VisDrone2019-DET-test-dev benchmark)
|
0.472 mAP@0.5
|
| Function Parameters | |
|
Supported tracking algorithms |
Centroid tracking, correlation tracking, multi-target tracking
|
|
Supported detection methods
|
AI-based recognition, centroid search
|
|
Video compression
|
H.264/H.265 encoding
|
|
Stream output protocols
|
RTSP, UDP, RTMP, HLS, etc
|
|
Configurable stream parameters
|
Bitrate, I-frame interval, QP value
|
|
Control interfaces
|
RS422/RS232/UDP/TCP |
| Environmental Compliance | |
|
Operating temp
|
-40℃ ～ +65℃
|
|
Storage temp
|
-55℃ ～ +75℃
|

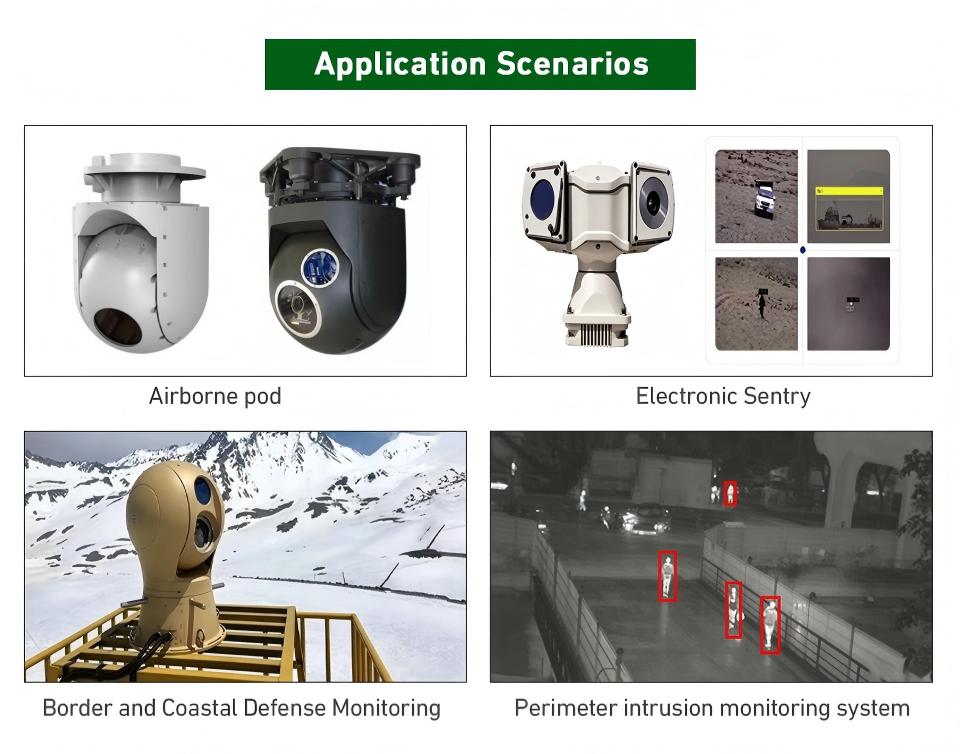

Main Application Scenarios
